当我们开始使用神经网络的时候,我们会经常用到激活函数,这是因为激活函数是任何神经网络结构中不可或缺的一部分。激活函数的目的是调整权重和偏差。在TensorFlow中,激活函数是作用在张量上非线性的操作符。它们很像前面一节的数学运算符, 应用比较广泛,但是它们主要的贡献是引入计算图中非线性的计算。同样,我们需要运行一下下面的命令来创建一个 graph session
:
>>> import tensorflow.compat.v1 as tf
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from tensorflow.python.framework import ops
>>> ops.reset_default_graph()
# 下面一行命令必须放在上面命令运行完之后,不可调换,否则容易出现empty graph
>>> tf.disable_eager_execution()
>>> sess = tf.Session()
激活函数都是存在于TensorFlow中神经网络(Neural Network)库中 tensorflow.nn
。除了使用内置激活函数,我们也可以使用TensorFlow运算来设计自己的激活函数。我们可以导入预先设定的函数( import tf.nn as nn
) 或更精确一点采用 ( tf.nn
)。
线性整流函数(Rectifed Linear Unit)¶
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> print(sess.run(tf.nn.relu([-3.,3.,10.])))
[ 0. 3. 10.]
>>> y_relu = sess.run(tf.nn.relu(x_vals))
>>> plt.plot(x_vals, y_relu, 'b:', label='ReLU', linewidth=2)
... plt.ylim([-5,11])
... plt.legend(loc='upper left')
... plt.show()
ReLUn函数¶
有时候,我们想增加前面的ReLU激活函数的线性部分。我们可以将 max(0,x)
函数放在 min()
函数里面。TensorFlow有一个应用函数叫做 ReLU6 函数。这个函数被定义为 min(max(0,x),6)
。 它是非光滑S型函数(hard-sigmoid function),计算非常快,而且并不会受到 vanishing(无限接近于零)或者 exploding 数值. 这些都会在第八章卷积神经网络和第九章递归神经网络中进行详细地讨论。
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> y_relu6 = sess.run(tf.nn.relu6(x_vals))
... plt.plot(x_vals, y_relu6, 'g-.', label='ReLU6', linewidth=2)
... plt.ylim([-5,11])
... plt.legend(loc='upper left')
... plt.show()
S型函数(Sigmoid)¶
S型函数是最普遍基本光滑的激活函数。它有时候也叫做逻辑函数,有着 \(\frac{1}{1+e^{x}}\) 的形式。Sigmoid并不经常用,是因为在训练过程中,它有抵消反向传播的趋势。
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> print(sess.run(tf.nn.sigmoid([-1.,0.,1.])))
>>> plt.plot(x_vals, y_sigmoid, 'y-..', label='Sigmoid', linewidth=2)
... plt.ylim([0,1])
... plt.legend(loc='upper left')
... plt.show()
\(\tanh\) 函数¶
另外一个平滑的激活函数就是 \(\tanh\) (hyper tangent). \(\tanh\) 函数很像 sigmoid 函数,与之不同的是,前者它的值域在 \([-1,1]\) 之间。这个函数的形式是 \(\frac{\sinh}{\cosh}\), 它的另一种形式是 \(\frac{e^{x}-e^{-x}}{e^{x}+e^{-x}}\) 。
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> print(sess.run(tf.nn.tanh([-1.,0.,1.])))
>>> y_tanh = sess.run(tf.nn.tanh(x_vals))
>>> plt.plot(x_vals, y_tanh, 'b:', label='Tanh', linewidth=2)
... plt.ylim([-2,2])
... plt.legend(loc='upper left')
... plt.show()
softsign 函数¶
softsign
函数也会被经常用着激活函数,它拥有着 \(\frac{x}{\left| x \right|+1}\) 数学形式。 softsign
是 soft
函数的近似。
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> print(sess.run(tf.nn.softsign([-1.,0.,1.])))
[-0.5 0. 0.5]
>>> y_softsign = sess.run(tf.nn.softsign(x_vals))
>>> plt.plot(x_vals, y_softsign, 'g-.', label='Softsign', linewidth=2)
... plt.ylim([-1,1])
... plt.legend(loc='upper left')
... plt.show()
softplus 函数¶
softplus
函数是 ReLU
函数的光滑版本,它有着 \(\log(e^{x}+1)\) 的形式。
>>> x_vals = np.linspace(start=-10,stop=15,num=100)
>>> print(sess.run(tf.nn.softplus([-1.,0.,1.])))
[0.31326166 0.6931472 1.3132616 ]
>>> y_softplus = sess.run(tf.nn.softplus(x_vals))
>>> plt.plot(x_vals, y_softplus, 'r--', label='Softplus', linewidth=2)
... plt.ylim([-2,15])
... plt.legend(loc='upper left')
... plt.show()
Exponential Linear Unit(ELU)函数¶
指数线性单元(ELU)函数很像 softplus
函数,但是底渐近线是-1而不是0, 它有着 \(\begin{cases}e^{x}+1, x<0 \\x, x\ge 0 \end{cases}\) 的数学形式。
>>> x_vals = np.linspace(start=-10,stop=10,num=100)
>>> print(sess.run(tf.nn.elu([-1., 0., 1.])))
[-0.63212055 0. 1. ]
>>> y_elu = sess.run(tf.nn.elu(x_vals))
>>> plt.plot(x_vals, y_elu, 'k-', label='ExpLU', linewidth=0.5)
... plt.ylim([-2,10])
... plt.legend(loc='upper left')
... plt.show()

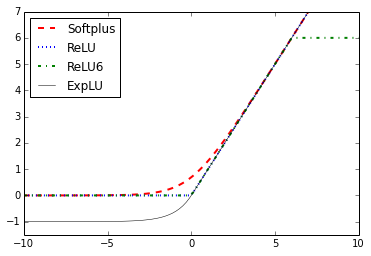

总结¶
以上函数可以放在一起进行比较。
>>> plt.plot(x_vals, y_softplus, 'r--', label='Softplus', linewidth=2)
... plt.plot(x_vals, y_relu, 'b:', label='ReLU', linewidth=2)
... plt.plot(x_vals, y_relu6, 'g-.', label='ReLU6', linewidth=2)
... plt.plot(x_vals, y_elu, 'k-', label='ExpLU', linewidth=0.5)
... plt.ylim([-1.5,7])
... plt.legend(loc='upper left')
... plt.show()

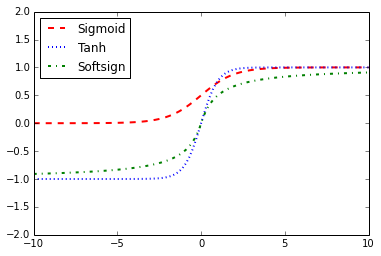

>>> plt.plot(x_vals, y_sigmoid, 'r--', label='Sigmoid', linewidth=2)
... plt.plot(x_vals, y_tanh, 'b:', label='Tanh', linewidth=2)
... plt.plot(x_vals, y_softsign, 'g-.', label='Softsign', linewidth=2)
... plt.ylim([-2,2])
... plt.legend(loc='upper left')
... plt.show()
本节学习模块¶
注意
Rectified Linear Unit(ReLU)函数介绍
Computes rectified linear: max(features, 0).
See: https://en.wikipedia.org/wiki/Rectifier_(neural_networks) Example usage: >>> tf.nn.relu([-2., 0., -0., 3.]).numpy() array([ 0., 0., -0., 3.], dtype=float32)
param features: | A Tensor. Must be one of the following types: float32, float64, int32, uint8, int16, int8, int64, bfloat16, uint16, half, uint32, uint64, qint8. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor. Has the same type as features. |
注意
Rectified Linear Unit6(ReLU6)函数介绍
Computes Rectified Linear 6: min(max(features, 0), 6).
param features: | A Tensor with type float, double, int32, int64, uint8, int16, or int8. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor with the same type as features. |
References
- Convolutional Deep Belief Networks on CIFAR-10:
- Krizhevsky et al., 2010 ([pdf](http://www.cs.utoronto.ca/~kriz/conv-cifar10-aug2010.pdf))
注意
Sigmoid函数介绍
Computes sigmoid of x element-wise.
Formula for calculating sigmoid(x): y = 1 / (1 + exp(-x)).
For x in (-inf, inf) => sigmoid(x) in (0, 1)
Example Usage:
If a positive number is large, then its sigmoid will approach to 1 since the formula will be y = <large_num> / (1 + <large_num>)
>>> x = tf.constant([0.0, 1.0, 50.0, 100.0])
>>> tf.math.sigmoid(x)
<tf.Tensor: shape=(4,), dtype=float32,
numpy=array([0.5 , 0.7310586, 1. , 1. ], dtype=float32)>
If a negative number is large, its sigmoid will approach to 0 since the formula will be y = 1 / (1 + <large_num>)
>>> x = tf.constant([-100.0, -50.0, -1.0, 0.0])
>>> tf.math.sigmoid(x)
<tf.Tensor: shape=(4,), dtype=float32, numpy=
array([0.0000000e+00, 1.9287499e-22, 2.6894143e-01, 0.5],
dtype=float32)>
param x: | A Tensor with type float16, float32, float64, complex64, or complex128. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor with the same type as x. |
Usage Example:
>>> x = tf.constant([-128.0, 0.0, 128.0], dtype=tf.float32)
>>> tf.sigmoid(x)
<tf.Tensor: shape=(3,), dtype=float32,
numpy=array([0. , 0.5, 1. ], dtype=float32)>
@compatibility(scipy) Equivalent to scipy.special.expit @end_compatibility
注意
tanh函数介绍
Computes hyperbolic tangent of x element-wise.
Given an input tensor, this function computes hyperbolic tangent of every element in the tensor. Input range is [-inf, inf] and output range is [-1,1].
`python x = tf.constant([-float("inf"), -5, -0.5, 1, 1.2, 2, 3, float("inf")]) tf.math.tanh(x) ==> [-1. -0.99990916 -0.46211717 0.7615942 0.8336547 0.9640276 0.9950547 1.] `
param x: | A Tensor. Must be one of the following types: bfloat16, half, float32, float64, complex64, complex128. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor. Has the same type as x. If x is a SparseTensor, returns SparseTensor(x.indices, tf.math.tanh(x.values, …), x.dense_shape) |
注意
softsign函数介绍
Computes softsign: features / (abs(features) + 1).
param features: | A Tensor. Must be one of the following types: half, bfloat16, float32, float64. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor. Has the same type as features. |
注意
softplus函数介绍
Computes softplus: log(exp(features) + 1).
param features: | A Tensor. Must be one of the following types: half, bfloat16, float32, float64. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor. Has the same type as features. |
注意
Exponential Linear Unit函数介绍
Computes exponential linear: exp(features) - 1 if < 0, features otherwise.
See [Fast and Accurate Deep Network Learning by Exponential Linear Units (ELUs) ](http://arxiv.org/abs/1511.07289)
param features: | A Tensor. Must be one of the following types: half, bfloat16, float32, float64. |
---|---|
param name: | A name for the operation (optional). |
returns: | A Tensor. Has the same type as features. |
